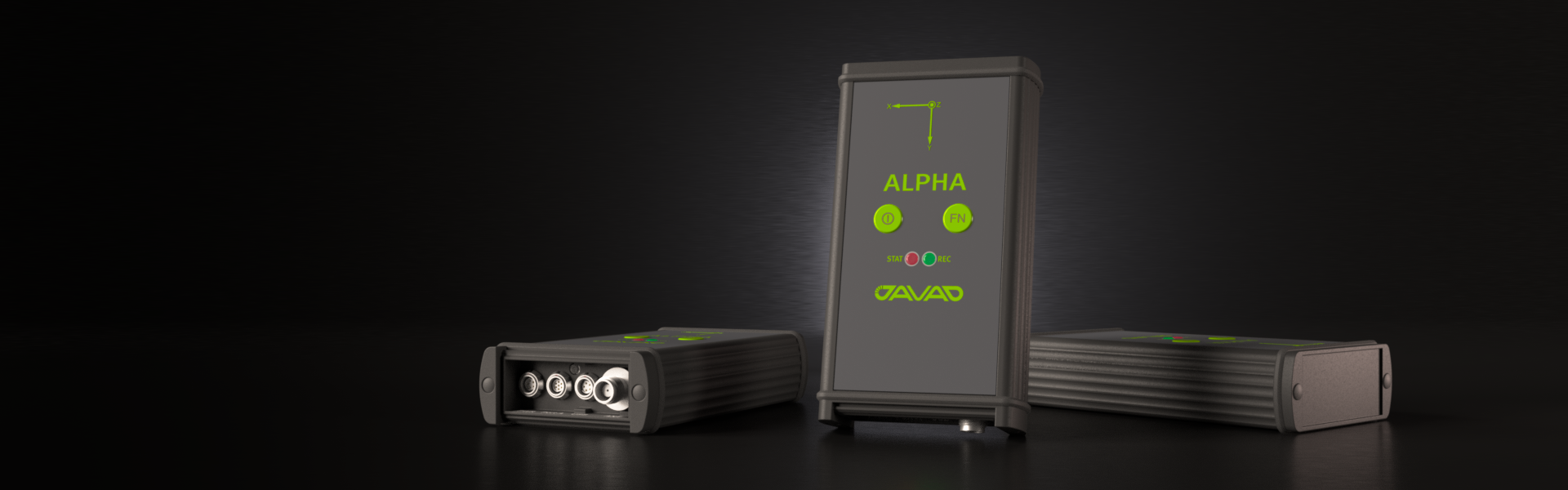

The ALPHA INS is an advanced GNSS-aided Inertial Navigation System in
a rugged environmental enclosure. Available in single and dual antenna
options.



Experience enhanced performance in challenging environments with
patented anti-spoofing and jamming detection, all-constellation tracking, and
fast acquisition.

Accelerometers and gyroscopes are fully calibrated, temperaturecompensated,
and mathematically aligned to an orthogonal coordinate
system.

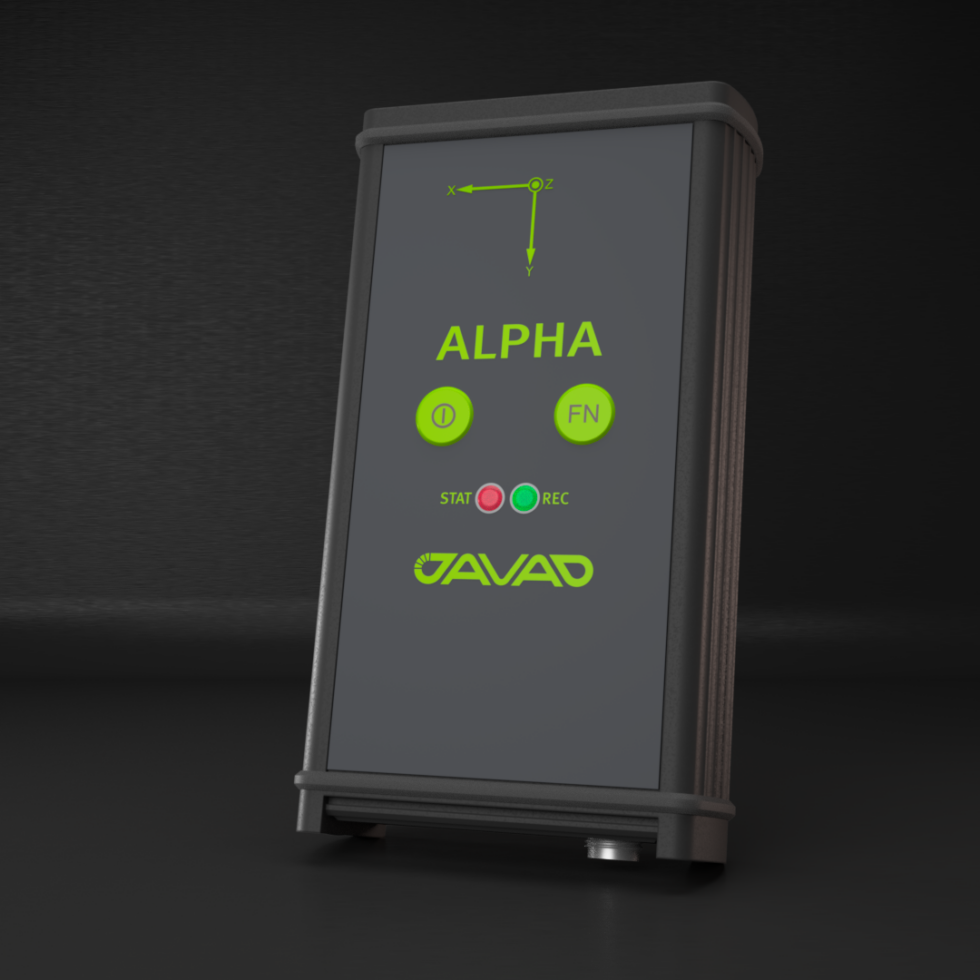

The on-board power supply accepts any voltage from +4.5 to +40 volts and delivers clean filtered power where needed. This eliminates the risk of power contamination (ripples) that can be created when clean power is generated externally and delivered to the board via cables. ALPHA INS also includes a TriPad interface (two LEDs, ON/OFF, and function buttons), and Bluetooth® wireless technology. In addition, the receiver comes with a large amount of flash data storage. Simply stated, additional functions are not needed to incorporate ALPHA INS in most applications.

Standard Configuration

  • TR-2S or TR-3S or TR-3S DUO
  • RAIM
  • TriPad Interface (3S models only)
  • RS232 Serial Port (460.8 kbps)
  • External GNSS Antenna TNC Female connector
  • Up to 16 GB eMMC memory
  • Code Differential Base
  • Multi-Base Code Differential Rover
  • Advanced Multipath Reduction
  • USB port
  • SBAS (WAAS/EGNOS)

Optional Features

  • Update Rate: 10, 20, 50, 100, & 200Hz
  • Heading Rate: 20, 50, & 100Hz (3S DUO only)
  • RTK Rate: 20, 50, 100, & 200Hz
  • 0.2mm GNSS Dynamic Calibration (3S & 3S DUO only)
  • Event Marker
  • Bluetooth® Interface
  • NavIC L1/L5/S
  • QZSS and QZSS L6 Data
  • Spectrum Data Output
  • Spoofing/Jamming Detection
  • IMU-P Support via RS422 Interface
  • Space Speed & Altitude

Pre-Built & Customizable

ALPHA INS is pre-configured with the ports shown below. Contact our team to build a custom configuration for your needs.

Standard Front Panel

All standard models include the following I/O ports:

  • Power
  • Serial
  • USB
  • GNSS Antenna Input

2S & 3S Back Panel


Blank back panel



3S DUO Back Panel

  • 2nd GNSS Antenna Input
