Better Performance
with Less Power

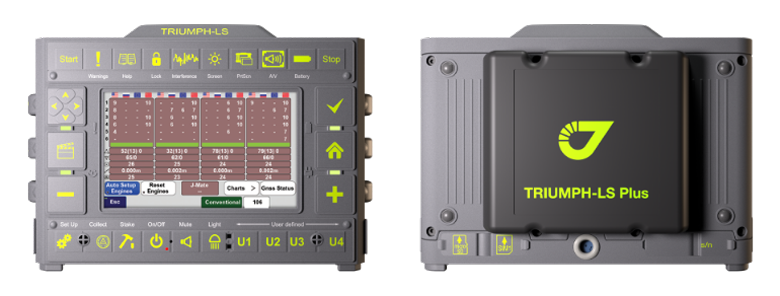

The Ultimate Land Survey Machine

Receiver+Antenna+Radio Modem+Controller+Pole

Major Upgrade From the Original TRIUMPH‑LS


4 Super-Engine RTK

4 Super-Engine RTK
Never experience a bad fix again!

TRIUMPH-LS Plus runs 4 separate RTK engines in parallel, each operating under a different set of parameters. When all engines agree on a solution, you can be confident that you have a verified good fix.


RTPK Option

Combine the strengths of RTK and PPK to get the best of both worlds. RTPK post-processes and verifies your RTK data in parallel and real-time.

With Javad's Triumph LS Plus with RTPK, I can get repeatable, verifiable and accurate coordinates in the woods. Just don't tell the competition, they still think it can't be done
-Ty Brady, PLS

After using the RTPK I can't imagine not having it on board. It has proven to be an excellent tool in those tough spots providing a reliable check on the RTK. Keep up the good work for us JAVAD users.
-Henry P. Broadhurst, PLS, CFedS


RTPK Option

TRIUMPH 3 at the Core

4 Super-Engine RTK

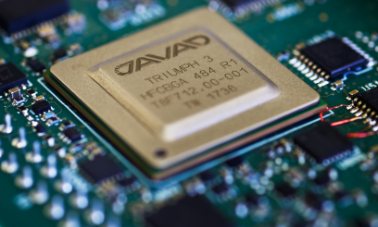

At the heart of TRIUMPH-LS Plus beats the 3rd generation of JAVAD's unparalleled custom-designed TRIUMPH ASIC. 874 Channels, improved Fast Acquisition, Anti-Jam filters, and many other features are built into this smaller package that uses ~55% of the power of the prior generation!

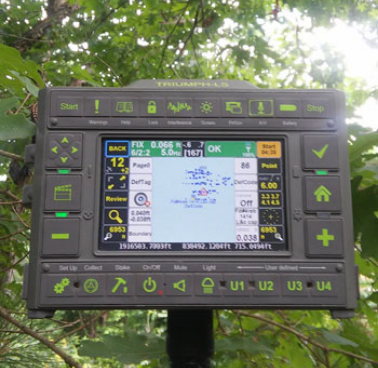

Field-Tested and Field-Proven

Field-Tested and Field-Proven The Triumph-LS Plus continues to provide the reliable results in an incredibly shorter amount of time with its four multi-constellation engines.
Because of the adverse conditions I push RTK to work in, the upgrade cost was easy to justify as I’m sure the return on investment will be very short given the production gains I’m seeing.

-Shawn Billings, PLS
Field-Tested and Field-Proven These Plus units are at least 40%-50% faster… The combination of the 4 super engines AND the RTPK is unbeatable. you CAN get an accurate shot just about anywhere!
-Darren Clemons, PLS


Builds on the Field-Proven Features of TRIUMPH-LS

Store and Stake like never before

Introducing GUIDE data collection in the TRIUMPH-LS. Visual Stake-out, navigation, 4 "Super Engine" RTK, over 3,000 coordinate conversions, advanced CoGo features, versatile attribute tagging, feature coding and automatic photo and voice documentation on a high resolution, large, bright 800x480 pixels display.
Read more

Productivity & Performance

874 channels combined with three powerful processors and program memory in a single chip which uses less power and makes the total system less expensive.

Some questioned the need for the 216 channels. They now realize the need for 440 channels. We assign multiple channels to each satellite for redundancy and reliability. We use over 100 channels to scan GNSS bands for interference (patent pending). 874 channels is the KEY to reliable performance.

Our satellite tracking technology, parallel RTK engines, visual stakeout, revolutionary innovative simple and accurate field line work, visual stakeout, an unique interference monitoring and reporting feature, TRIUMPH-LS Plus is the most advanced GNSS system ever built.

Battery Life: 25 Hours;
System Weight: 2.5 Kg ( 5.5 lb)

25 hour battery life in RTK rover mode with full screen brightness and UHF/GSM. “Hot Swappable” and “removable batteries” are concepts of the past.

Two hours of charge = Two days of surveying

The internal batteries are field serviceable and can be easily replaced by the user when needed.

The TRIUMPH-LS, including batteries and pole is the lightest complete GNSS RTK receiver in its class. The total weight of the TRIUMPH-LS RTK system, including radio, controller, pole and 25 hours of internal battery is 2.5 Kg.


Rugged, Tough, Versatile

You can collapse the pole and take the unit next to you in your car seat. There are no long poles and no separate controller and brackets to disassemble.

Built on a tough magnesium alloy chassis, all connectors, SIM cards, Micro-SD cards are protected against the harshest environment.

12 User Programmable Keys provide direct access to product functions.

The built in GNSS full tracking antenna has a large ground plane and the best centering and rotational performance on the market.

The same chassies that survived numerous drop tests and even the "180-Pound Gorilla"!


Interference Monitoring and Reporting

Have you noticed in some places on some days that your receiver does not operate as it should? Intentional and unintentional interference appears almost everywhere. The Triumph-LS has the best avilable interference protection. It is the only receiver that monitors and reports interference graphically and numerically. Over 100 channels are dedicated to continuous interference monitoring.

Interference awareness is a must when performing GNSS work. It allows safe GNSS operation in a city, airport and military environment.

Offset Survey with Photogrammetry

Offsets can be calculated using the internal camera of the TRIUMPH-LS Plus or with an external camera!
Read more

Software/Firmware Update

The TRIUMPH-LS Plus notifies you when updates are available. You choose when to download and install them. Updates can be performed over Wi-Fi, no cables required!
