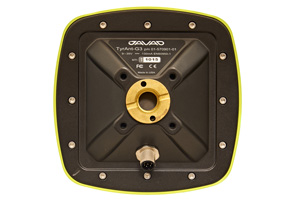

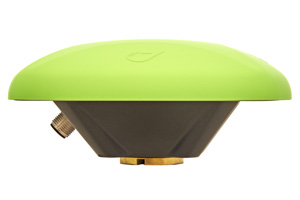

TyrAnt receiver (smart antenna) is based on our TRIUMPH Technology implemented in our TRIUMPH Chip. The high performance GNSS antenna is integrated together with the receiver in the compact and robust housing. TyrAnt can be mounted on flat surfaces with four screws or mounted on standard poles (5/8-11 or 1-14 inches thread).
Communication is provided via CAN 2.0 or RS-232/RS-422 interface.

Standard Configuration

• Total 216 All-In-View Channels
• GPS L1 for G3 version and
• GPS L1/L2/L2C/L5 for G2T
• GLONASS L1 for G3 version
• Update Rate 1 Hz
• RAIM
• Memory 0 MB
• CAN 2.0 (1Mbps)
• Internal GNSS Antenna

Optional Feature

• Galileo E1/E5A
• BeoDou B1
• QZSS
• SBAS
• Update Rate 5 Hz, 10 Hz, 20 Hz, 50 Hz, 100 Hz
• RTK Rate 1 Hz, 5 Hz, 10 Hz, 20 Hz, 50 Hz,100 Hz
• Data Recording up to 256 MB
• Multi-Base Code Differential Rover
• Code Differential Base
• Advanced Multipath Reduction
• Heading Determination
• Spectrum Data Ouput
• CAN Open Interface
• RS-232/RS-422 Serial Port (460.8 kbps)
