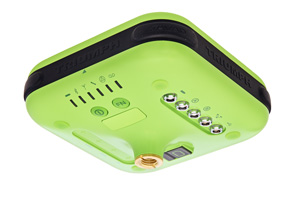

TRIUMPH-1M

The new TRIUMPH-1M receiver inherits the best features of our famous TRIUMPH-1. Based on our new 864 channel chip, equipped with the internal 4G/LTE/3G card, easy accessible microSD and microSIM cards, includes “Lift & Tilt” technology.

Triumph-1M
Triumph-1M
Main Features
  • Total 864 All-In-View Channels
  • GPS L1/L2/L2C/L5
  • GLONASS L1/L2/L3
  • Update Rate 10Hz
  • RTK Rate 10Hz
  • Ethernet
  • Data Recording 16 GB
  • RAIM
  • Code Differential Base/Rover
  • Advanced Multipath Reduction
  • MinPad Interface
  • Two RS232 Serial Ports (460.8 kbps)
  • USB port
  • Internal GNSS antenna
  • Bluetooth® Interface
  • Wi-Fi (IEEE 802.11b/g)
  • KFK WAAS/EGNOS (SBAS)
  • Integrated Inclinometers
  • Integrated Compass
  • Lift & Tilt
  • Rechargeable Li-Ion Battery
Optional Feature
  • Galileo E1/E5A/E5B/AltBOC
  • QSZZ
  • BeiDou B1/B2
  • IRNSS
  • Update Rate 20Hz, 50Hz & 100Hz
  • RTK Rate 20Hz, 50Hz & 100Hz
  • Heading Determination
  • GLONASS .2mm Dynamic Calibration
  • In-Band Interference Rejection
  • JAVAD ArcPad Extension
  • 1 PPS timing strobe
  • Event Marker
  • Spectrum Data Output
  • Javad Mobile Tools
  • Spoofing Detection
  • JShield+
  • 2 microSIM Card Slots
  • Internal 4G LTE Mini Card
  • Internal Radio Modem
  • J-Shield
  • External GNSS Antenna TNC Female connector
