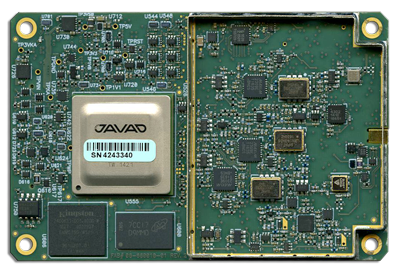

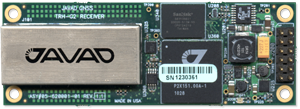

We offer 6 OEM boards to cover the entire spectrum of precision applications and budgets. Each board is based on our TRIUMPH Technology implemented in our TRIUMPH Chip. For the first time in the GNSS history we offer up to 100 Hz RTK. Each board includes the true Galileo option which we offer FREE for one year.
The on-board power supply on every OEM board accepts any voltage from +4.5 to +40 volts and delivers clean filtered voltage where needed. This eliminates the risk of power contamination (ripples) that can be created when clean power is generated elsewhere and delivered to the board via cables. Each board also includes drivers for four LEDs, ON/OFF and function button controllers. In addition, each board comes with large amount of flash for data storage. The CAN interfaces in each board are provided complete with all associated hardware and firmware, not just the CAN bus. The same is true with all the serial RS232/RS422 ports in our boards. Simply stated, additional functions are not needed to incorporate any of our OEM boards in most applications.
In addition to timing strobes and event markers, each OEM boards also include the option of complete IRIG timing system. Click here for option descriptions.
Click here for detailed signal specifications on connector pins and here for physical board details. To communicate and control the boards we have comprehensive and easy-to-use command sets. Please see our GNSS Receiver External Interface Specification (GREIS) manual for details.
We have been able to achieve tremendous advances in technology while reducing costs substantially. In the table below we have summarized our features and included two examples in the market to allow you make a comparison. Simple features like 1-PPS and serial ports are not included in the table below but are present in all of our boards.
| Features/Boards | TR-G2 | TR-G3 | TR-G2T | TR-G3T | TRE-G2T | TRE-G3T | TRE-G3TAJ |
|---|---|---|---|---|---|---|---|
| GPS L1 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| GPS L2/L2C | -- | -- | 16 | 16 | 16 | 16 | 16 |
| GPS L5 | -- | -- | 16 | 16 | 16 | 16 | 16 |
| Galileo E1 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Galileo E5A | -- | -- | 16 | 16 | 16 | 16 | 16 |
| GLONASS L1 | -- | 16 | -- | 16 | -- | 16 | 16 |
| GLONASS L2 | -- | -- | -- | 16 | -- | 16 | 16 |
| SBAS | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| In-Band Interference Rejection | -- | -- | -- | -- | -- | -- | Yes |
| Fast acquisition channels | 110K | 110K | 110K | 110K | 110K | 110K | 110K |
| RS232 | 2 | 2 | 2 | 2 | 3 | 3 | 3 |
| RS422 | -- | 1 | 1 | 1 | 1 | 1 | 1 |
| USB | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Ethernet | -- | -- | -- | -- | Yes | Yes | Yes |
| External Frequency Input | -- | -- | -- | -- | Yes | Yes | Yes |
| Complete CAN | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Event Marker Inputs | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
| PPS Outputs | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
| Button/LED support | Yes* | Yes | Yes | Yes | Yes | Yes | Yes |
| IRIG timing system | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| On-board Flash, MB | 256 | 256 | 256 | 256 | 2048 | 2048 | 2048 |
| 4.5-to-40V Power supply | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Hardware Viterbi | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Total channels | 216 | 216 | 216 | 216 | 216 | 216 | 216 |
| Size (mm) | 40x55 | 57x66 | 57x66 | 57x88 | 100x80 | 100x80 | 100x80 |
| *LED support only |
|

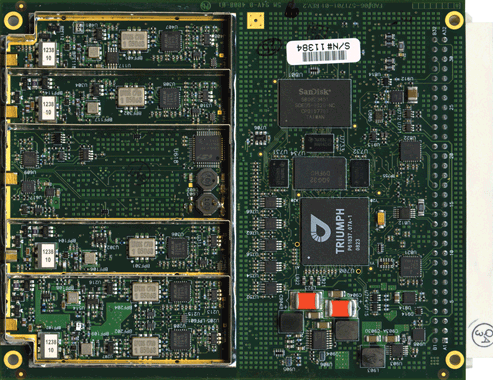

Quattro-G3D is a 100x120 mm Euro-card board that accepts inputs from up to four antennas. It is equivalent of four receivers which operate synchronously with a common oscillator and central processor to coordinate all communications and other activities. One of the receivers (the main) tracks 14 each of GPS L1/L2, GLONASS L1/L2 and Galileo E1. This receiver can perform long baseline RTK in conjunction with a base. The other three receivers each track 14 each of GPS L1/L2, and Galileo E1 and along with the main one can provide attitude (orientation) solutions. Dual frequency GPS alone can provide very fast and reliable orientation solutions due to very short antenna separations (about one meter) and the fact that typical applications are in open fields. The main GPS+GLONASS L1/L2 unit can help in providing long baseline RTK solution. Quattro-G3D has all the features and options of our OEM boards. Click here for detailed signal specifications on each pin and here for physical board details. |
|

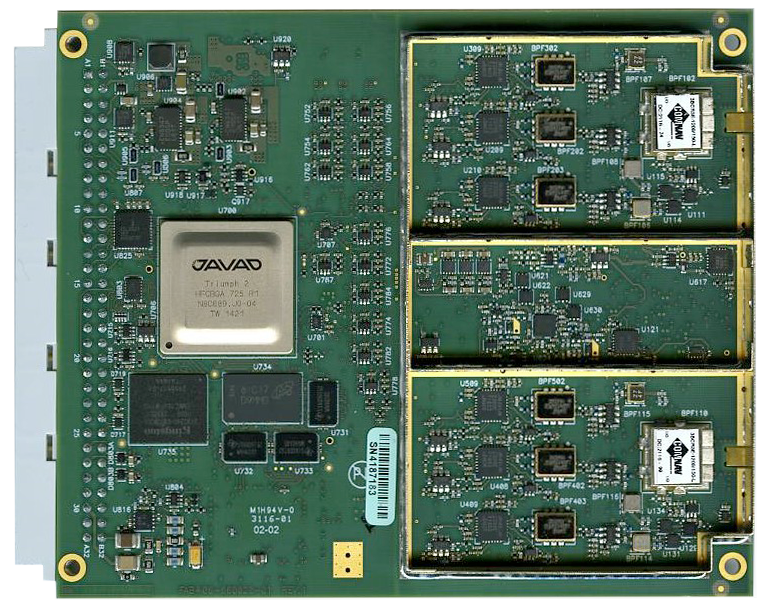

Duo-G2D is a 100x80 mm half Euro-card board that accepts inputs from up to two antennas. It is equivalent of two receivers which operate synchronously with a common oscillator and central processor to coordinate all communications and other activities. Each of the two receivers track 14 each of GPS L1, GPS L2, and Galileo E1. Duo-G2D has all the features and options of our OEM boards. Click here for detailed signal specifications on each pin and here for physical board details. Duo-G2D is ideal for heading applications. Dual frequency GPS alone can provide very fast and reliable solutions due to very short baseline between antennas and the fact that typical applications are in open fields. We have determined that addition of GLONASS satellites does not add any advantage in this case and does not justify the additional cost. Duo-G2 is similar to Duo-G2D, but is intended for heading applications where single frequency GPS and Galileo can do the job and cost is a significant factor. It can also be used in positioning applications where a single antenna is not sufficient to observe satellites in all orientations and positions. |
