Monitor and record the health of your shots

Verify, Monitor, Record, Present and Defend

RTK is a statistical process by nature and needs verification. TRIUMPH-LS has six different RTK engines and extensive automatic verification to ensure your shots are 100% reliable.

It also has many tools to document the process of your shots for presentation when you need to prove and defend. The screen shots on following pages can automatically be recorded and attached to each point and easily exported in HTML format.

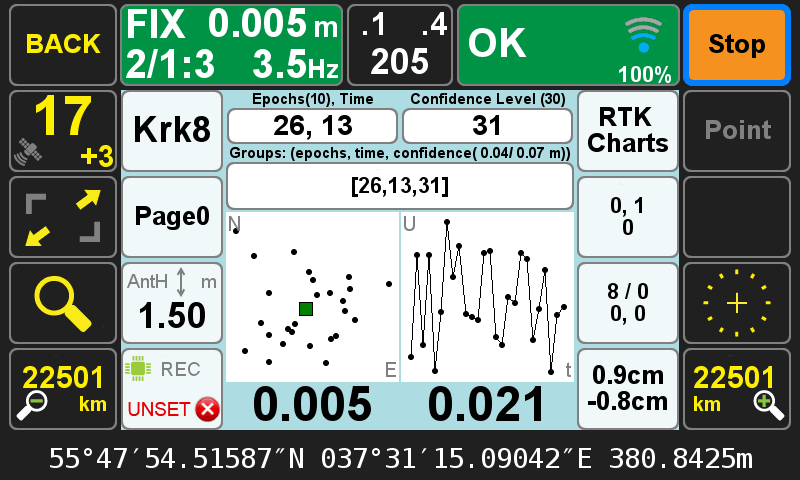

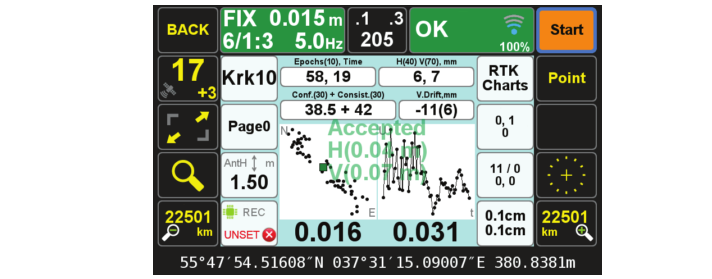

Phase-1 Action screen

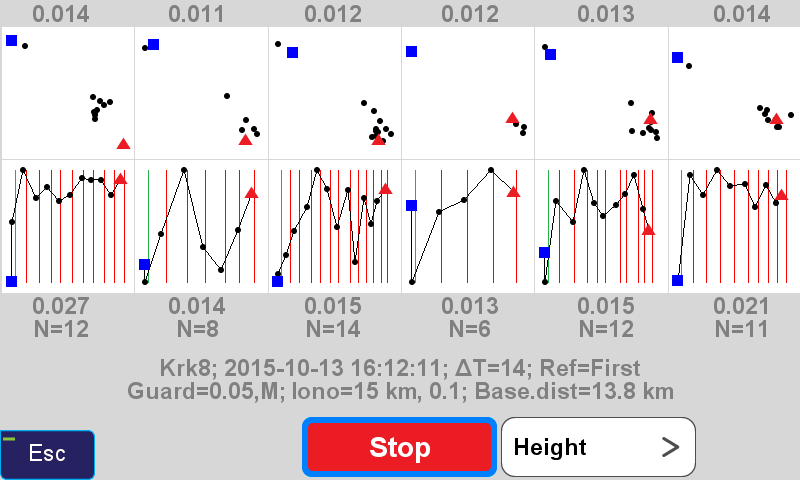

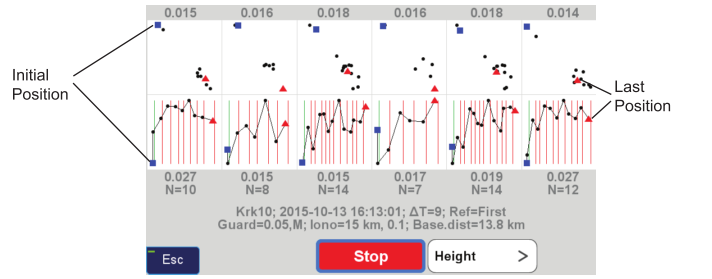

Phase-1 Horizontal and Vertical plot of each of the six engines

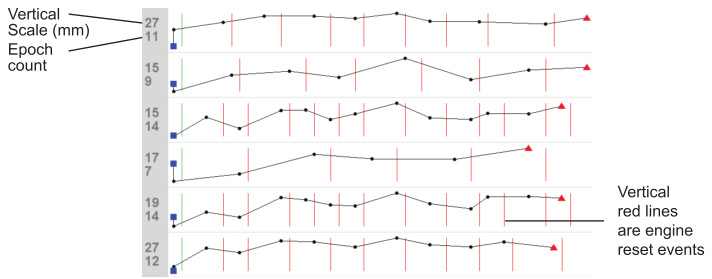

Phase-1 expanded vertical plot of each of the six engines

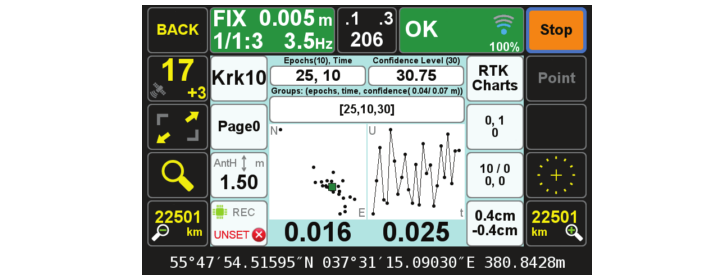

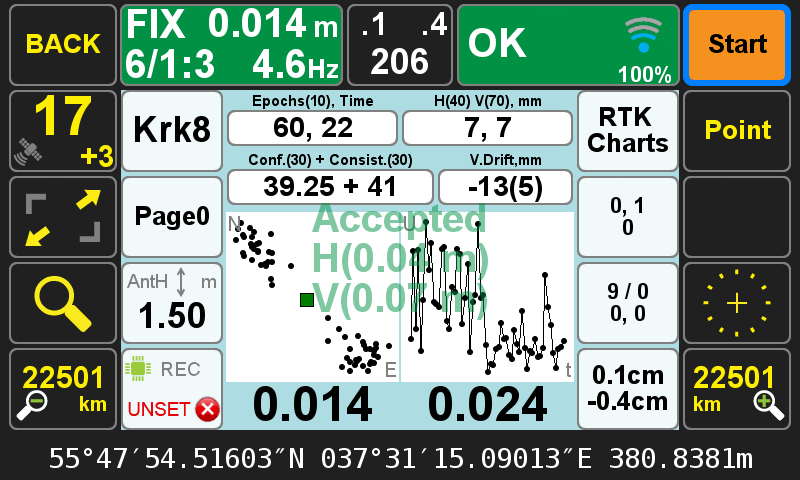

Phase-2 Action screen

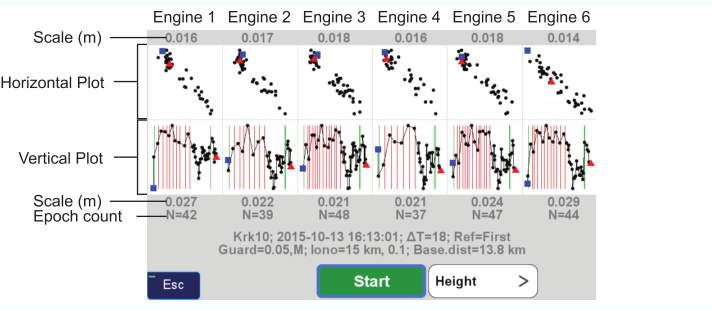

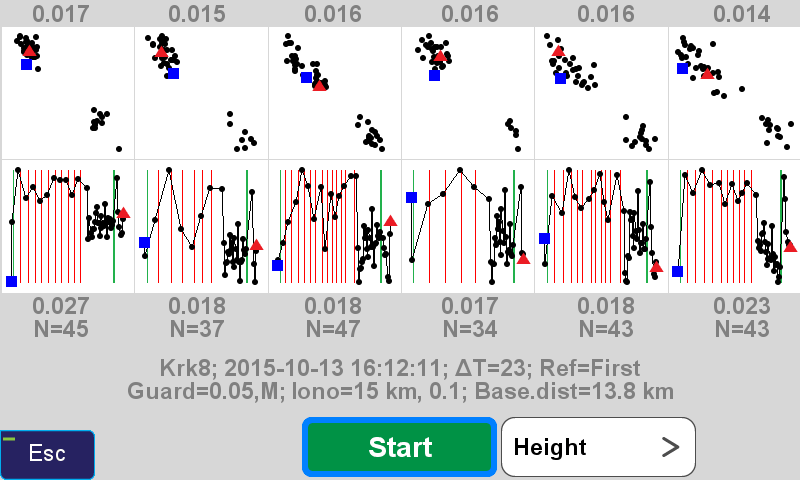

Phase-1 & 2 Horizontal and Vertical plot of each of the six engines

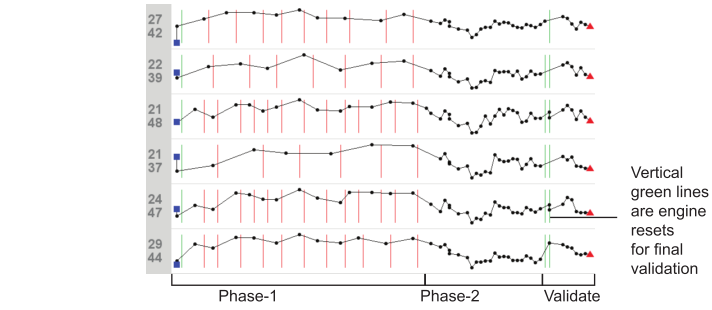

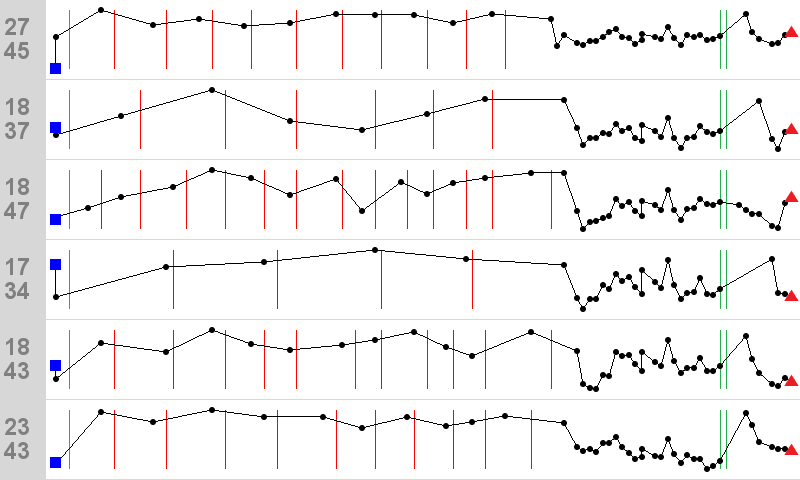

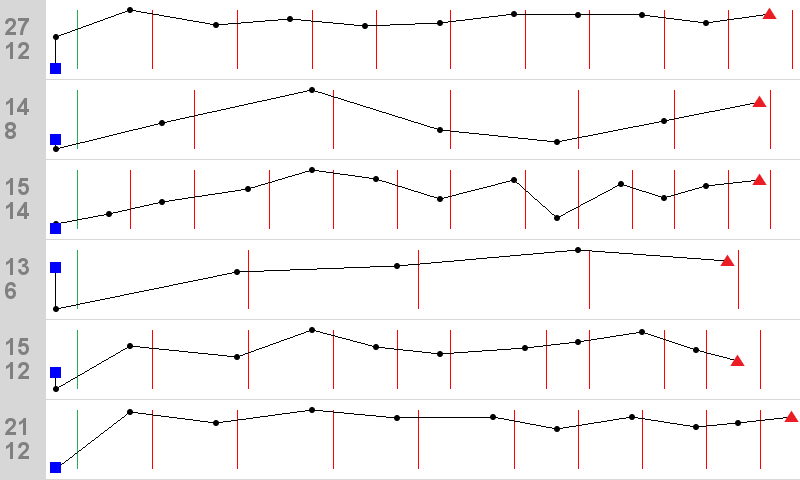

Phase-1 & 2 expanded vertical plot of each of the six engines

Example of exported HTML document. One page per point.

Krk8 -- 55°47′54.51603″N 037°31′15.09013″E 380.8381 m
Page Page0 Code DefCode Tag --
WGS84 (ITRF2008) 55°47′54.52″N 037°31′15.09″E 380.84 m
Base 55°54′02.82″N 037°23′44.99″E 259.52 m
Time 2015-10-13 16:12:34 Time UTC 2015-10-13 13:12:34
Antenna JAVTRIUMPH_LSA NONE Ant.Height 1.500 m / Vert
Epochs 60 Sats 11+6 Duration 22.800 s
Solution FIX Confidence 39.000 Consistency 41.000
HRMS 0.007 m VRMS 0.007 m 3dRMS 0.010 m
HDOP 0.743 PDOP 1.289 GDOP 1.461
95% Confidence Ellipse σ₁:0.014 m, σ₂:0.010 m, θ:24°26′5.845021″, σh:0.013 m
